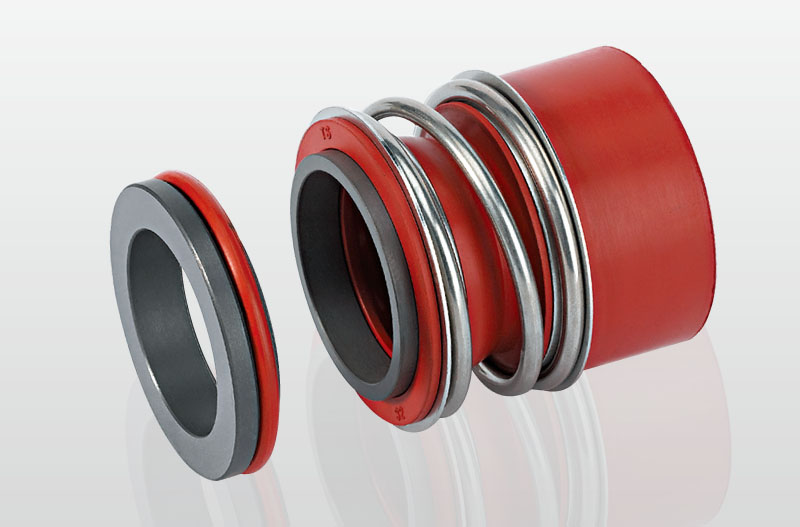

TDS MG13 Componente de Sello Mecánico （Reemplaza AESSEAL B013, BURGMANN MG13 FLOWSERVE 193,MTU FG3,Para HECKER HN 41ONU）
Industrial Pump SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
|
Límites de operación:
Presión: ≤1.2MPaVelocidad: ≤10m/s Temperatura: -20℃~+180℃ ● Anillo giratorio (Carbono/SiC) ● Anillo estacionario (Cerámica/ SiC/TC) ● Sello secundario (NBR/EPDM/VITÓN) ● Retén (SUS304/SUS316) ● Resorte (SUS304/SUS316) ● Soporte de Resorte (SUS304/SUS316) |
 |
|

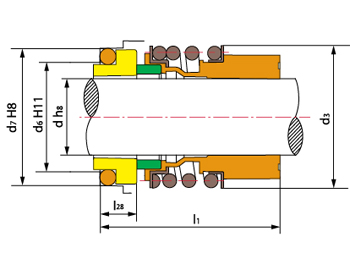

Tamaño de sello d (mm) |
d3 | d6 | d7 | l1 | l28 |
| 20 | 37.0 | 29 | 35 | 45 | 7.5 |
| 22 | 37.0 | 31 | 37 | 45 | 7.5 |
| 24 | 42.5 | 33 | 39 | 50 | 7.5 |
| 25 | 42.5 | 34 | 40 | 50 | 7.5 |
| 28 | 49.0 | 37 | 43 | 50 | 7.5 |
| 30 | 49.0 | 39 | 45 | 50 | 7.5 |
| 32 | 53.5 | 42 | 48 | 55 | 7.5 |
| 35 | 57.0 | 44 | 50 | 55 | 7.5 |
| 38 | 59.0 | 49 | 56 | 55 | 9.0 |
| 40 | 62.0 | 51 | 58 | 55 | 9.0 |
| 42 | 65.5 | 54 | 61 | 60 | 9.0 |
| 43 | 65.5 | 54 | 61 | 60 | 9.0 |
| 45 | 68.0 | 56 | 63 | 60 | 9.0 |
