• Features

Límites de operación:
Presión: ≤0.6MPa/≤1.6MPa
Velocidad: ≤2m/s/≤5m/s
Temperatura: -30℃~+200℃/-80℃~+250℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC/Cerámica)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

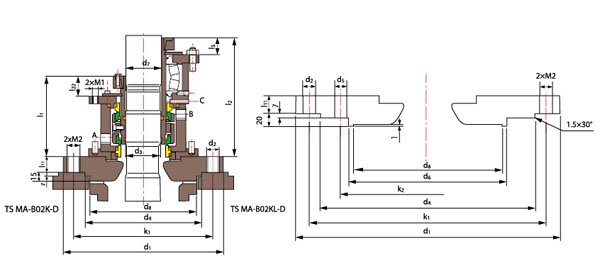

d3 (mm)	d7	d1	Nxd2	d4	Nxd5	d6	d8	k1	k2	l1	l2	l11	l22	l3	M1	M2	A,B
40	38	175	4x18	110	\	\	102	145	\	142	184	25	35	28	M12	M16	G3/8
50	48	240	8x18	176	\	\	138	210	\	147	195	25	40	28	M12	M16	G3/8
60	58	275	8x22	204	\	\	188	240	\	158	203	25	42	28	M12	M20	G3/8
80	78	305	8x22	234	\	\	212	270	\	170	240	30	45	34	M16	M20	G1/2
100	98	395	12x22	313	\	\	268	350	\	177	240	30	52	34	M16	M20	G1/2
100	98	395	12x22	313	\	\	268	350	\	177	240	30	52	34	M16	M20	G1/2
125	120	505	4x22	422	12x22	320	306	460	350	208	266	30	75	40	M20	M20	G1/2
140	135	505	4x22	422	12x22	320	306	460	350	223	282	30	79	40	M20	M20	G1/2
160	150	505	4x22	422	12x22	320	306	460	350	228	282	30	77	40	M20	M20	G1/2
160	150	505	4x22	422	12x22	320	306	460	350	228	282	30	77	40	M20	M20	G1/2
160	150	505	4x26	474	12x22	370	356	515	400	228	282	30	77	40	M20	M20	G1/2
