• Features

Face seal,static inside sealing-type VC

Face seal,static inside sealing-type CC

Type VC:

Face seal or flange seal for

static outside sealing

Application Range

Pressure: ≦ 350 bar

Temperature: -150～+225℃



*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

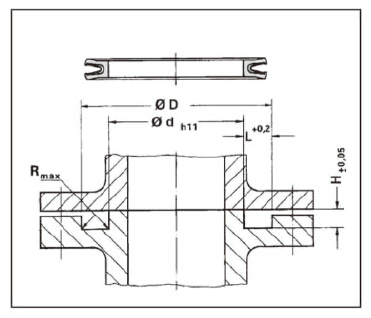

Groove I.D.	Groove O.D.	Groove Width	Groove Depth	Radius	equivalent O-Ring Cord
¢d	¢D	L	H	R	Thickness	O-Ring Code
40～44.9	d+7.2	3.6	2.25	0.4	2.62	B
45～79.9	d+9.6	4.8	3.10	0.6	3.53	C
80～109.9	d+14.2	7.1	4.70	0.8	5.33	D
110～700	d+19.0	9.5	6.10	0.8	6.99	E

Example of an order

Type                VC

Groove I.D.    ¢d=100 mm

Groove O.D.    ¢D=114.2mm

Groove depth     H=4.7mm
