• Features

Rod seak with increased spring force.



Static & Dynamic sealing-type HRJ

Type HRJ:

Rod seal with increased spring

force for static & dynamic

application

Application Range

Pressure: ≦ 400 bar

Temperature: -120～+260℃



*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

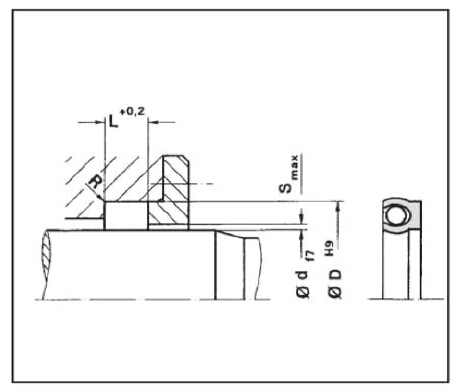

Rod Diameter	Groove Bottom	Groove Width	Gap	Radius	equivalent O-Ring Cord
¢d	¢D	L	S	R	Thickness	O-Ring Code
3～10	d+3	2.5	0.06	0.4	1.9	A
10～22	d+4	3.2	0.06	0.4	2.4	B
22～25	d+6	4.7	0.07	0.6	3.5	C
48～150	d+10	7.5	0.08	0.8	5.7	D
150～400	d+15	11	0.12	0.8	8.4	E

Example of an order

Type                               HRJ

Rod diameter                   ¢d=100 mm

Groove bottom        ¢D=110mm

Groove width                   L=7.5mm
