• Features

Límites de operación:
Presión : ≤2MPa
Velocidad: ≤23m/s
Temperatura: -30℃~200℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/EPDM/Kalrez)
● Otras piezas (SUS304/SUS316)

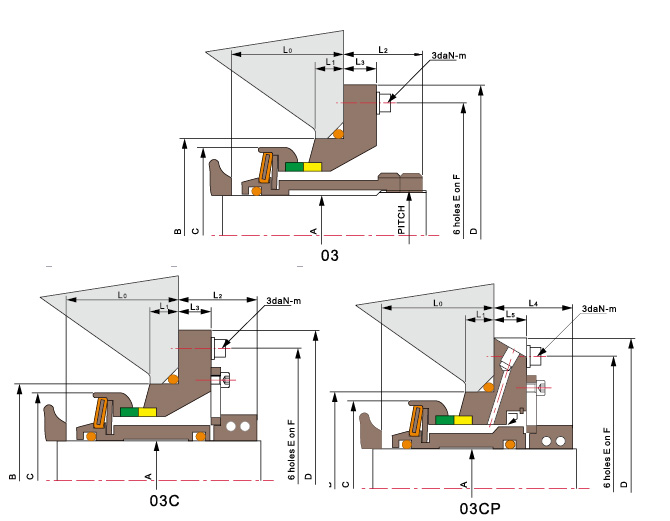

Modelo	A	B	C	D	E	F	L0	L1	L2	L3	L4	L5
47×55	20~32	76	72	124	11	106	48.5	13	32	12	61.5	30
72×82	33~51	108	99	168	13	148	61	15	38	18	70	35
103×113	52~78	140	135	199	13	180	61	15	39	19	81	40
132×144	79~108	185	170	240	13	220	62	16	40	20	85	40
160×178	09~137	210	208	290	13	260	72	22	40	20	90	40
211×229	138~180	280	264	370	17	330	93	25	42	20	93	42
