• Features

Límites de operación:
Presión : ≤2MPa
Velocidad: ≤23m/s
Temperatura: -30℃~200℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/EPDM/Kalrez)
● Otras piezas (SUS304/SUS316)

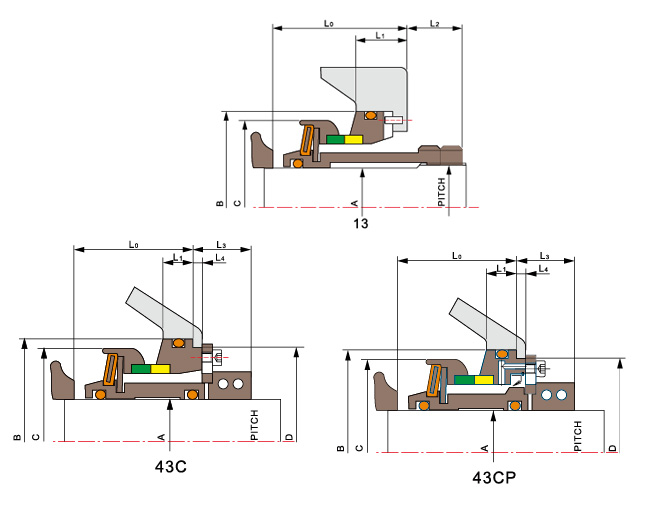

Modelo	A	B	C	D	L0	L1	L2	L3	L4
47×55	20~32	76	72	68	50.5	15	40.5	25	4
72×82	33~51	108	99	102	61	15	48	28	6
103×113	52~78	140	135	131	63	17	57	30	6
132×144	79~108	185	170	177	67	18	58	33	6
160×178	109~137	210	208	202	86	34	60	50	6
211×229	138~180	280	264	265	105	40	62	60	8
