• Features

Límites de operación:
Presión : ≤1.6MPa
Velocidad: ≤3600rpm
Temperatura: ≤180℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/Carbono)
● Sello secundario (VITÓN/EPDM)
● Otras piezas (SUS304/SUS316)

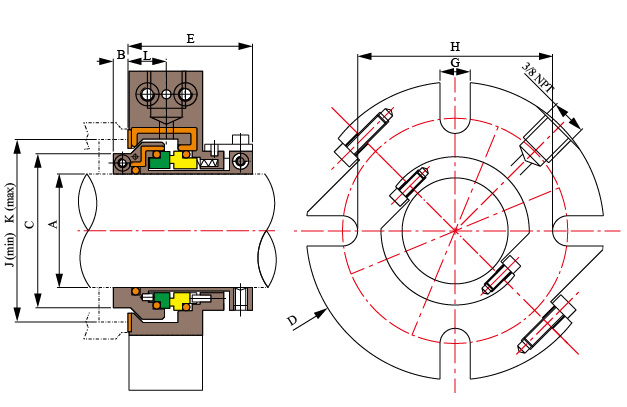

A	B	C	D	E	F	G	H	J	K	L
45mm (1.722)	6.35	65.1	140	54	64	14.3	84.9	66.68	76.2	16.7
48mm (1.890)	6.35	68.2	140	54	64	14.3	90.5	68.85	79.38	16.7
50mm (1.968)	6.35	68.2	140	54	64	14.3	90.5	68.85	79.38	16.7
55mm (2.162)	6.35	77.8	159	54	64	17.4	100	79.4	88.9	16.7
60mm (2.362)	6.35	81	165	54	64	17.4	104.8	85.73	95.25	16.7
65mm (2.560)	6.35	85	165	54	64	17.4	112.8	88.9	98.4	16.7
70mm (2.756)	6.35	90.5	197	54	64	17.4	112.8	92.08	104.77	16.7
75mm (2.953)	6.35	96.8	203	54	64	17.4	125.4	100	111.1	16.7
80mm (3.150)	7.14	106.4	210	62	72	20.6	131.8	108	120.65	20.6
87mm (3.425)	7.14	112.7	216	62	72	20.6	138.1	114.3	127	20.6
90mm (3.543)	7.14	115.9	219	62	72	20.6	141.3	117.5	130.2	20.6
95mm (3.740)	7.14	117.5	222	62	72	20.6	144.5	119.05	130.18	20.6
100mm (3.937)	7.14	125.4	224	62	72	20.6	147.6	127	136.52	20.6
120mm (4.724)	7.14	143.7	248	62	72	20.6	176.2	146.05	158.75	20.6
125mm (4.921)	9.5	157.2	*273	77.8	96.8	23.8	185.7	160.3	171.4	23.4
