• Features

Límites de operación:
Presión : ≤1MPa
Velocidad: ≤3600rpm
Temperatura: +≤200℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC/Cerámica)
● Sello secundario (VITÓN/EPDM/NBR)
● Otras piezas (SUS304/SUS316)

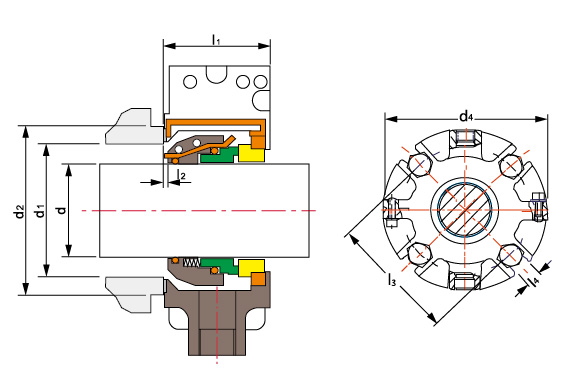

d (mm)	l1	l3							d4	l2	d2	d1		l4
		10	12	14	16	18	20	22				Nom	max
38	51	67	89	\	\	\	\	\	127	1.5	70	57	63	14.2
40	51	90	92	\	\	\	\	\	127	1.5	73	60	67	14.2
45	51	93	95	\	\	\	\	\	140	1.5	76	63	70	14.2
50	51	101	103	\	\	\	\	\	140	1.5	83	70	76	14.2
55	51	107	109	111	113	\	\	\	159	1.5	89	76	83	17.5
60	51	115	117	119	121	\	\	\	165	1.5	92	80	86	17.5
65	51	117	119	121	123	\	\	\	165	1.5	102*	83	95*	17.5
70	64	\	141	143	145	\	\	\	197	3.0	121	95	108	17.5
75	64	\	147	149	151	\	\	\	203	3.0	127	102	114	18.3
80	64	\	155	157	159	\	\	\	210	3.0	134	108	121	18.3
85	64	\	160	162	164	166	168	\	216	3.0	140	114	127	20.6
90	64	\	160	162	164	166	168	\	216	3.0	140	114	127	20.6
100	64	\	173	175	177	179	181	\	229	3.0	153	127	140	20.6
110	64	\	184	186	188	190	192	\	242	3.0	165	140	152	20.6
180	96	\	\	\	\	271	273	275	337	3.0	248	216	235	23.8
185	96	\	\	\	\	277	279	281	343	3.0	254	223	242	23.8
190	96	\	\	\	\	277	279	281	343	3.0	254	223	242	23.8
195	96	\	\	\	\	284	286	288	350	3.0	261	229	248	23.8
