• Features

Límites de operación:
Presión : ≤1.6MPa
Velocidad: ≤3600rpm
Temperatura: ≤180℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/Carbono)
● Sello secundario (VITÓN/EPDM)
● Otras piezas (SUS304/SUS316)

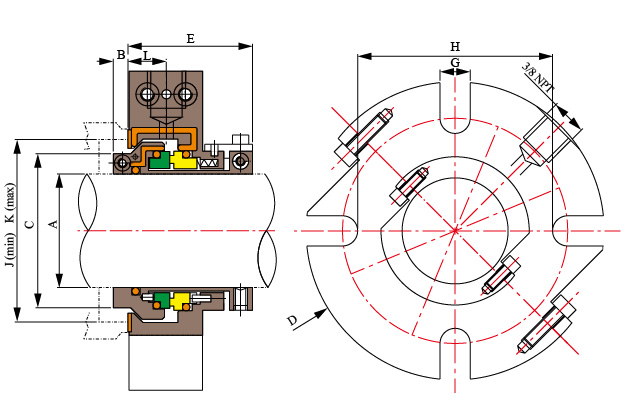

A (pulgadas)	B	C	D	E	F	G	H	J	K	L
1.500	0.25	2.187	5.25	2.125	2.5	0.562	3.125	2.25	2.625	0.656
1.687	0.25	2.437	5.5	2.125	2.5	0.562	3.375	2.5	2.875	0.656
1.750	0.25	2.437	5.5	2.125	2.5	0.562	3.375	2.5	2.875	0.656
1.875	0.25	2.562	5.5	2.125	2.5	0.562	3.344	2.625	3	0.656
1.937	0.25	2.625	5.44	2.125	2.5	0.562	3.563	2.687	3.125	0.656
2.000	0.25	2.687	5.44	2.125	2.5	0.562	3.563	2.75	3.125	0.656
2.125	0.25	2.812	6	2.125	2.5	0.687	3.688	2.875	3.375	0.656
2.188	0.25	2.937	6.25	2.125	2.5	0.687	3.813	3	3.375	0.656
2.250	0.25	3.062	6.25	2.125	2.5	0.687	3.937	3.125	3.5	0.656
2.375	0.25	3.188	6.25	2.125	2.5	0.687	4.062	3.25	3.5	0.656
2.438	0.25	3.188	6.44	2.125	2.5	0.687	4.125	3.375	3.625	0.656
2.500	0.25	3.188	6.44	2.125	2.5	0.687	4.125	3.375	3.625	0.656
2.625	0.25	3.347	6.44	2.125	2.5	0.687	4.438	3.5	3.875	0.656
2.688	0.25	3.562	7.82	2.125	2.5	0.687	4.438	3.625	4.125	0.656
2.750	0.25	3.562	7.82	2.125	2.5	0.687	4.438	3.625	4.125	0.656
2.875	0.25	3.687	7.82	2.125	2.5	0.687	4.812	3.812	4.25	0.656
2.938	0.25	3.812	7.88	2.125	2.5	0.687	4.938	3.937	4.375	0.656
3.000	0.25	3.812	7.88	2.125	2.5	0.687	4.938	3.937	4.375	0.656
3.250	0.281	4.188	8.25	2.437	2.812	0.812	5.188	4.25	4.75	0.812
3.375	0.281	4.312	8.25	2.437	2.812	0.812	5.313	4.375	4.875	0.812
3.438	0.281	4.437	8.5	2.437	2.812	0.812	5.437	4.5	5	0.812
3.500	0.281	4.437	8.5	2.437	2.812	0.812	5.437	4.5	5	0.812
3.625	0.281	4.562	8.63	2.437	2.812	0.812	5.562	4.625	5.125	0.812
3.750	0.281	4.625	8.82	2.437	2.812	0.812	5.688	4.687	5.125	0.812
3.875	0.281	4.812	8.82	2.437	2.812	0.812	5.813	4.875	5.25	0.812
4.000	0.281	4.937	8.82	2.437	2.812	0.812	5.813	5	5.37	0.812
4.250	0.281	5.188	9.25	2.437	2.812	0.812	6.063	5.25	5.75	0.812
4.375	0.281	5.312	9.25	2.437	2.812	0.812	6.437	5.375	5.875	0.812
4.500	0.281	5.406	9.69	2.437	2.812	0.812	6.5	5.5	6	0.812
4.750	0.281	5.656	9.75	2.437	2.812	0.812	6.938	5.75	6.25	0.812
4.938	0.375	6.188	*10.75	3.062	2.812	0.937	7.312	6.312	6.75	0.923
5.000	0.375	6.188	*10.75	3.062	2.812	0.937	7.312	6.312	6.75	0.923
5.125	0.375	6.375	*11.00	3.062	2.812	0.937	7.812	6.5	7.25	0.923
5.250	0.375	6.375	*11.00	3.062	2.812	0.937	7.812	6.5	7.25	0.923
5.500	0.375	6.688	*11.50	3.062	2.812	0.937	7.813	6.812	7.375	0.923
5.750	0.375	6.938	*12.00	3.062	2.812	0.937	8.156	7.062	7.625	0.923
6.000	0.375	7.188	*12.25	3.062	2.812	0.937	8.437	7.312	7.875	0.923
6.250	0.375	7.438	*12.50	3.062	2.812	0.937	8.656	7.562	8.125	0.923
6.500	0.375	7.688	*12.25	3.062	2.812	0.937	8.813	7.812	8.375	0.923
6.750	0.375	7.938	*12.50	3.25	4	0.937	9.312	8.062	8.625	0.923
7.000	0.375	8.188	*12.75	3.25	4	0.937	9.562	8.312	8.75	0.923
8.500	0.375	9.688	14.25	3.25	4	1	11	9.812	10.25	0.923
